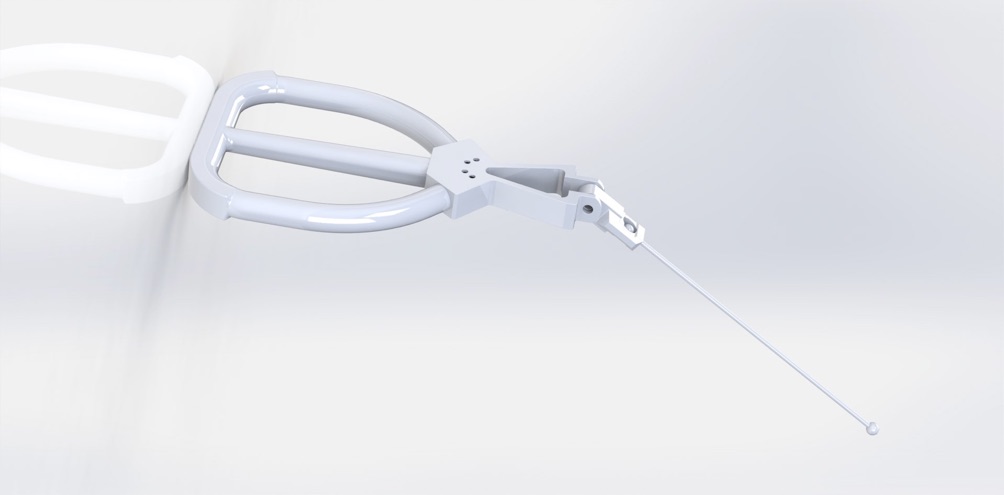

This is the 3D model of F16 Ejection Handle.

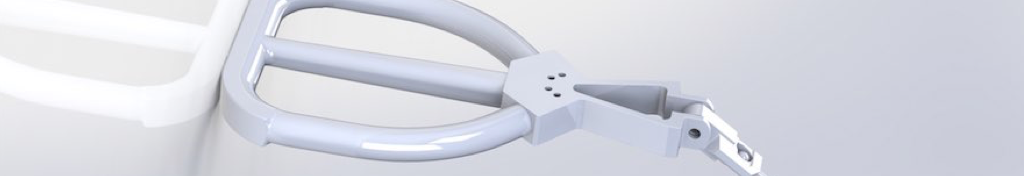

The loop is made of flexible rubber (yellow). The rubber loop extends into the black-oxide aluminum connector. But how far, I do not know. The three holes and internal of the connector block, I do not know ether. I cannot measure them without tearing it apart and damaging it. So, I bull-shitted that. You should not trust whatever dimension inside the connector block.

The long “rod” is actually a flexible steel cable, swaged by two R=1/4” steel ball ends.

Also, I did not model the #1 bolt and castle nut with lock pin, because the older version of SolidWorks I have does not have such small diameter bolt (smallest is 1/4”).

Data Source

                National Stock No & ADD : N/A

                Item Nomenclature : N/A

                Model # : 38286677-1

                Serial # :  N/A

                Manufacturer : N/A

                Condition : Used

                Inspection Date : N/A

                Surplus Date : N/A

                MFG Date : N/A

                Original Price : N/A

                Bought Price :

                Serviceable Label Not Available

                The only marking on it is :



    Created Date : July 27, 2016

    Last Modification Date : July 27, 2016

    Files :

            https://github.com/JonahTsai/F16/tree/master/Ejection%20Handle
