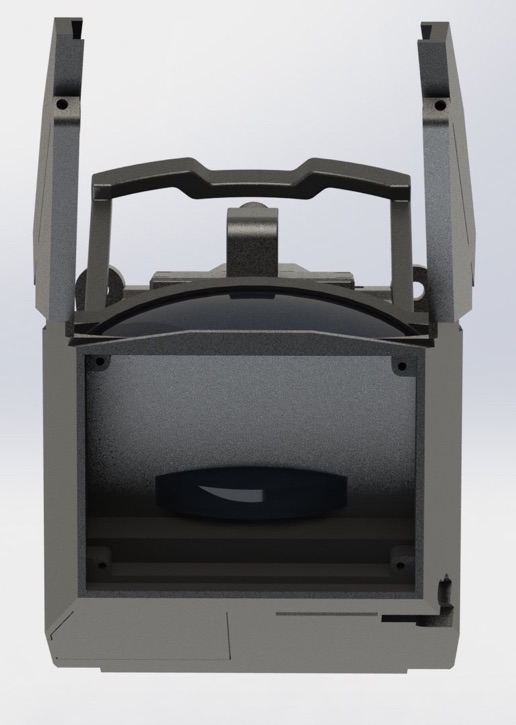

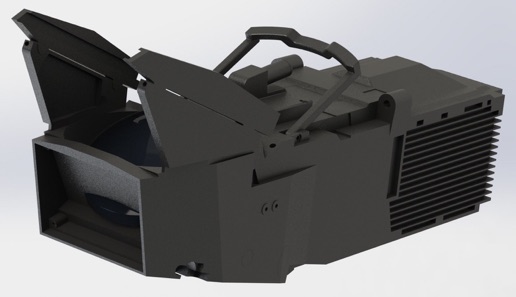

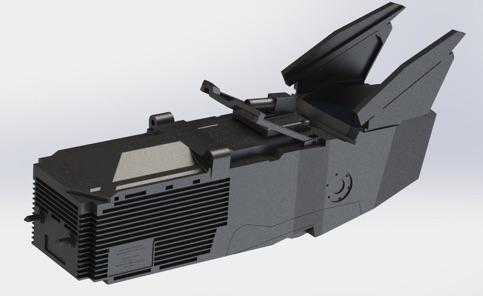

This is the 3D model of F16 Heads Up Display unit, based on Aerotronics LLC’s resin casting.

Please note that due to the nature of resin casting, and I cannot disassemble it to measure individual parts, the dimensions are not exactly accurate. I had to make a lot of “educated guesses” to correct some of the inconsistencies. However, I try to push the accuracies away from ICP and Combiner glass area, as these two are what most folx will be adding.

Also note that, this is a WIP model. It’s not completed.

Some of the files contain multi-body solids and references (insert parts) of other previous models. I do intend to save these multi-bodies into their own individual solid part files. However, since it may contain errors and changes in referenced files might actually get propagated to the referencing files, although the constraint solvers often makes mistakes, it’s still very valuable in letting the error propagate and alert me of the error. So, the referencing of other solid stays until it’s out of WIP status.

Data Source

           F16 HUD from Aerotronics

                National Stock No & ADD : N/A

                Item Nomenclature : N/A

                Model # : N/A

                Serial # :  N/A

                Manufacturer : N/A

                Condition : Used

                Inspection Date : N/A

                Surplus Date : N/A

                MFG Date : N/A

                Original Price : N/A

                Bought Price :

                Serviceable Label Not Available

                The only marking on it is :



    Created Date : Sept 25, 2015

    Last Modification Date : Sept. 25, 2015

    Files :

            https://github.com/JonahTsai/F16/tree/master/HUD
