F16 Throttle Arm
Jan. 15, 2017. Corrected some minor dimension of the FrictionTearPlate.sldprt file, according to the diagram posted by Sandman, at http://www.viperpits.org/smf/index.php/topic,9739.msg157384.html#msg157384.
Nov. 16, 2016. Added FrictionTearPlate.sldprt file. This is the tear drop shape friction plate (not rendered above). It’s based on the dimensions read from http://www.checksix-forums.com/download/file.php?id=36199, posted by Dimebug. I simply imported the STL file and read the dimensions, cross referenced the dimension with the ones I have and bump the dimensions to the closest imperial dimension. For instance, the large diameter of one side of the tear drop was vaguely measured as 76.5mm. But my friction plate is precisely 3”. So, it’s a good guess that it should have been 3”.

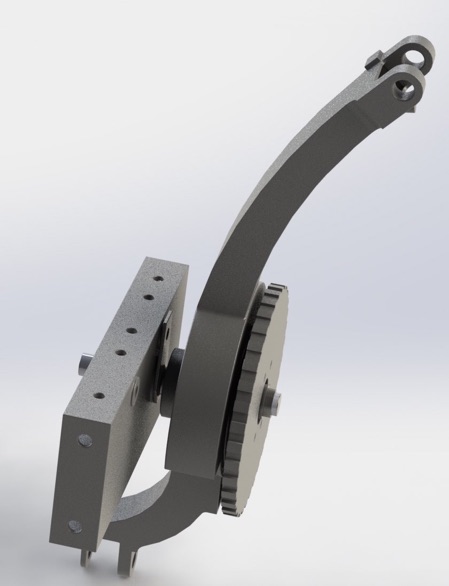

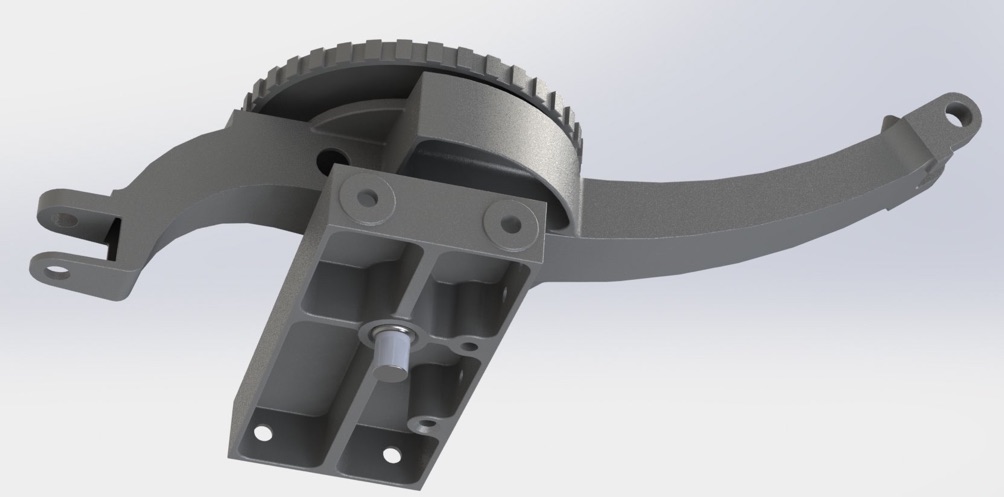

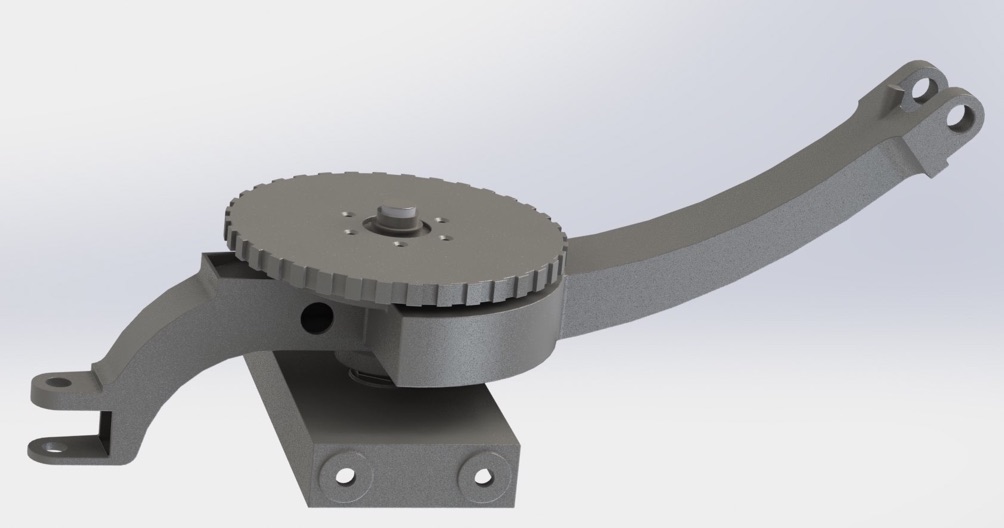

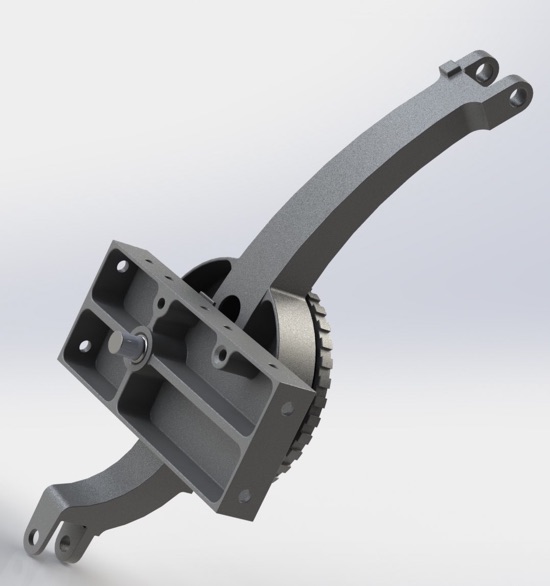

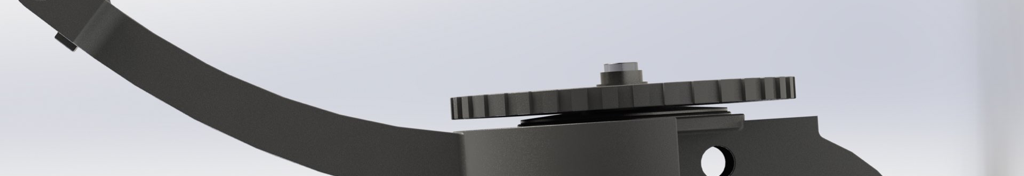

The teardrop-shaped friction plate is not rendered in the above pretty rendering, but it’s in the final assembly. Please update your files and you will see where this plate should be.
Data Source
F16 authentic part
National Stock No & ADD : 81755/16P1802-9 (81755/16P ASSY 16P18023)
Item Nomenclature : N/A
Model # : N/A
Serial # : N/A
Manufacturer : N/A
Condition : Used
Inspection Date : 4-6-88
Surplus Date : N/A
MFG Date : N/A
Original Price : N/A
Bought Price :
Serviceable Label Not Available
Created Date : Sept 11, 2015
Last Modification Date : Nov. 12, 2016
Files :
