Knobs, Buttons, and Lights

This page serves as the central location for all the knobs, buttons, and lights that I have modeled in various panels.

Some of these “things” are modeled in their corresponding panels. However, these knobs are used in many different panels on different aircrafts. For instance, Knob #1 is used on A-10’s Lighting Panel, as well as in several panels on F16, and it’s also commonly used on Boeing commercial jets. By collecting them in one central location, it’s easier for us to find and reuse than having to hunt down a particular panel model where it was first modeled.

So, it’s a catalog of knobs, buttons, etc. I will assign each knob a sequential number, for the lack of better terms. I will list their manufacturer P/Ns, if possible.

ALL IN ONE DOWNLOAD!!!

All the buttons, knobs, lights, and toggles I have can be downloaded all in one shot, HERE.

There are lights and toggles that are still not listed. I will list them individually on this page later, when I get to them. But you can still download them directly from GitHub, even though they are not listed on this page.

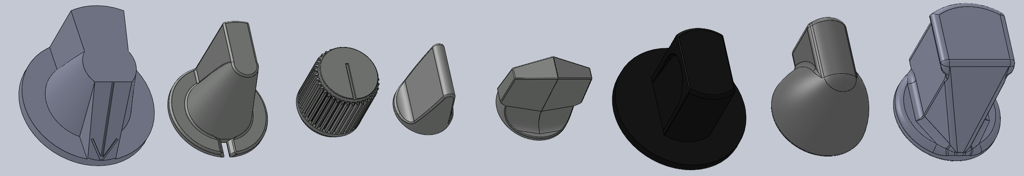

Knobs

• Knob 1

Manufacturer: EHS

P/N: 2562, MS25165

Type: Thermoplastic, Transilluminated

Known Uses:

1. A-10 Lighting Panel
2. F-16 Air Cond

Note: There are multiple versions of this knobs, some non-transilluminated, some rounded corners, some black, some non base disk, etc., all with different P/N.

File: Knob1.SLDPRT

• Knob 2

Manufacturer: EHC

P/N: 1389 (Thanks to Rufus for pointing out the MFG and P/N!)

Type: Cast Metal

Known Uses:

1. F-16 UHF Radio

File: Knob2.SLDPRT

• Knob 3

Manufacturer: Unknown

P/N: Unknown

Type: Cast Metal

Known Uses:

1. F-16 UHF Radio

File: Knob3.SLDPRT

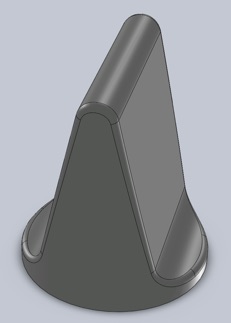

• Knob 4

Manufacturer: EHC

P/N: 1390 (thanks to Rufus for pointing out the Mfg and P/N!)

Type: Cast Metal

Known Uses:

1. F-16 UHF Radio

File: Knob4.SLDPRT

• Knob 5

Manufacturer: Unknown

P/N: Unknown

Type: Cast Metal

Known Uses:

1. F-16 UHF Radio

File: Knob5.SLDPRT

• Knob 6

Manufacturer: Unknown

P/N: Unknown

Type: Cast Metal

Known Uses:

1. F-16 UHF Radio

File: Knob6.SLDPRT

• Knob 7

Manufacturer: EHS

P/N: 3283 (sort of, 3283 has Pull to Zero on top of the knob, the IFF knob does not, and text on the rims are different)

Type: Thermo-plastic, Transilluminated

Known Uses:

1. F-16 IFF

File: Knob7.SLDPRT

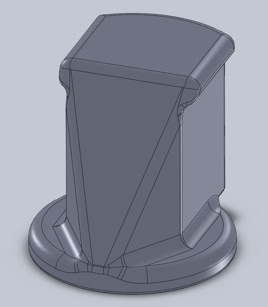

• Knob 8

Manufacturer: Unknown

P/N: Unknown (Very similar to EHS PB Series)

Type: Thermo-plastic, Transilluminated

Known Uses:

1. F-16 AIFF

File: Knob8.SLDPRT

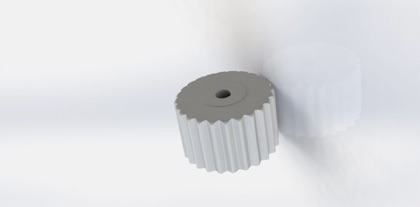

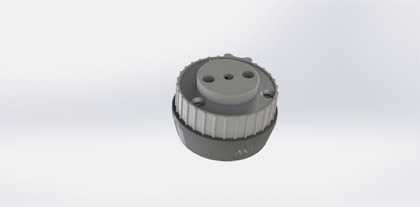

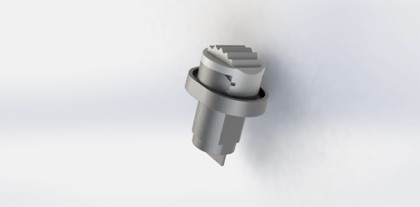

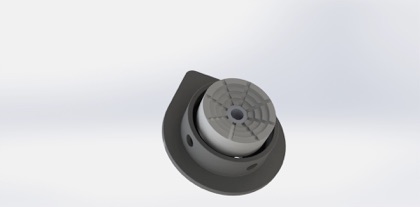

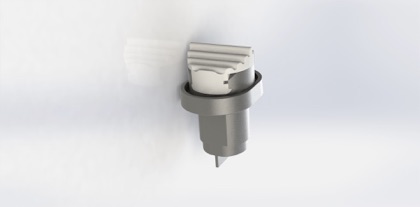

F16 TQS Knobs

Please note that, some of these TQS knobs are multi-part assemblies, each organized in its own directory. However, some shared parts are stored in the parent directory. You you will also need to get them. In general, grab the whole throttle directory.
